oob.h File Reference

Defines the "Out of Band" objects in a stream. More...

#include <das3/util.h>
#include <das3/buffer.h>

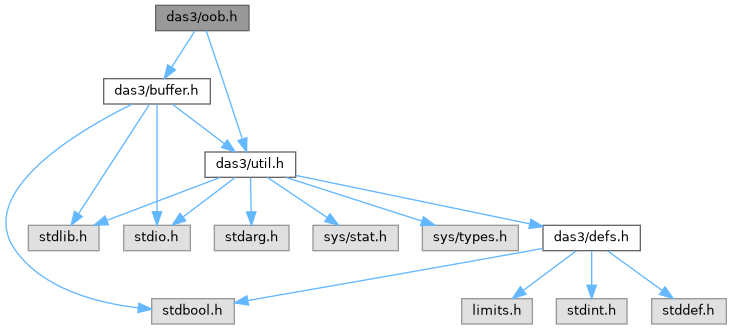

Include dependency graph for oob.h:

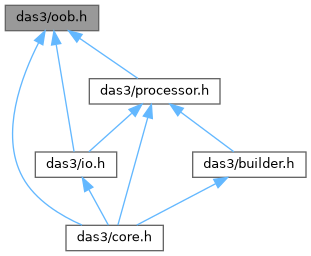

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	OutOfBand
	A container for Out-of-Band data. More...
struct	OobExcept
	describes an exception that can live in a stream. More...
struct	OobComment
	describes human-consumable messages that exist on the stream. More...

Functions
DAS_API const char *	das_except_toStr (das_except_t nType, int nDasVer)
	The stream name for an exception type.
DAS_API das_except_t	das_except_fromStr (const char *sType)
	The exception type for a stream name, from either stream version.
DAS_API void	OutOfBand_clean (OutOfBand *pThis)
	Clean up extra memory allocated when an out of band object is initialized.
DAS_API void	OobExcept_set (OobExcept *pThis, das_except_t nType, const char *sMsg)
	Set an exception structure to a particular exception.

Detailed Description

Defines the "Out of Band" objects in a stream.

These are comments and exceptions

Function Documentation

das_except_toStr()

DAS_API const char * das_except_toStr	(	das_except_t	nType,
		int	nDasVer
	)

The stream name for an exception type.

Two of the names changed between stream versions:

das_except_t	das2.2	das3.0
DAS_EX_UNKNOWN	Unknown	Unknown
DAS_EX_NO_DATA	NoDataInInterval	NoMatchingData
DAS_EX_SERVER_ERR	ServerError	ServerError
DAS_EX_QUERY_ERR	IllegalArgument	QueryError

Parameters

nType	The exception type
nDasVer	The stream major version, 2 or 3. das1 streams have no exceptions.

Returns

A static string, or NULL for an unknown type or version

das_except_fromStr()

DAS_API das_except_t das_except_fromStr

(

const char *

sType

)

The exception type for a stream name, from either stream version.

The two vocabularies never use one name for two different types, so this needs no version. Streams may carry types outside the table, so an unrecognized name is not an error.

Returns

The type, or DAS_EX_UNKNOWN for NULL or an unrecognized name

OutOfBand_clean()

DAS_API void OutOfBand_clean

(

OutOfBand *

pThis

)

Clean up extra memory allocated when an out of band object is initialized.

Parameters

pThis

the out of band item to clean up.

OobExcept_set()

DAS_API void OobExcept_set	(	OobExcept *	pThis,
		das_except_t	nType,
		const char *	sMsg
	)

Set an exception structure to a particular exception.

This is an initializer, it does not free a previous message. Call OutOfBand_clean() before setting the same structure again.

Parameters

pThis	A pointer to the exception to initialize
nType	The type of exception, one of: DAS_EX_NO_DATA DAS_EX_SERVER_ERR DAS_EX_QUERY_ERR
sMsg	The message for the exception, this is a human readable string.
