StreamHandler Interface Reference

#include <das2/processor.h>

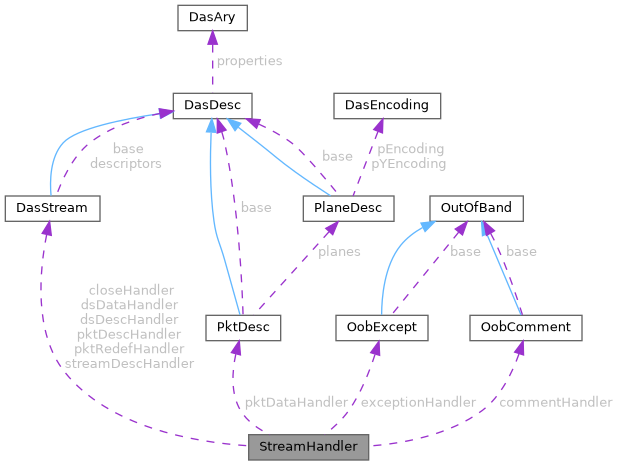

Inheritance diagram for StreamHandler:

Detailed Description

A set of callbacks used for input and output stream processing.

Public Member Functions
void	StreamHandler_init (StreamHandler *pThis, void *pUserData)
	Initialize a stream processor with default callbacks. More...
StreamHandler *	new_StreamHandler (void *pUserData)
	Create a new stream processor with default callbacks. More...

Data Fields
StreamDescHandler	streamDescHandler
	The function to be called when the stream header is read in. More...
PktDescHandler	pktDescHandler
	Sets the function to be called when each <packet></packet> element is read in.
PktRedefHandler	pktRedefHandler
	Sets the function to be called when a packet ID is about to be re-defined before the old pkt descriptor object is deleted.
PktDataHandler	pktDataHandler
	Sets the function to be called when each data packet is read in.
ExceptionHandler	exceptionHandler
	Sets the function to be called when a stream exception is read in. More...
CommentHandler	commentHandler
	StreamCommentHandler receives stream annotations. More...
CloseHandler	closeHandler
	Sets the function to be called the reading of the stream is completed.
void *	userData
	An optional User-data pointer that is passed along to all callbacks. More...

Member Function Documentation

void StreamHandler_init	(	StreamHandler *	pThis,
		void *	pUserData
	)

Initialize a stream processor with default callbacks.

The library has builtin callbacks for the StreamExceptionHandler and the StreamCommentHandler. Calling this function will initialize a StreamHandler structure with the defaults and set all other callback pointers to NULL. The User Data pointer will also be NULL.

Parameters

pThis	The stream handler structure to initialize
pUserData	A pointer that will be passed in to each callback, used to provide access to whatever state data you may need to reference.

StreamHandler * new_StreamHandler

(

void *

pUserData

)

Create a new stream processor with default callbacks.

The library has builtin callbacks for the StreamExceptionHandler and the StreamCommentHandler. Calling this function will initialize a StreamHandler structure with the defaults and set all other callback pointers to NULL. The User Data pointer will also be NULL.

Parameters

pUserData

The user data pointer will be set to this value.

Returns

A new StreamHandler allocated on the heap

Field Documentation

StreamDescHandler streamDescHandler

The function to be called when the stream header is read in.

This is the header with the element <stream></stream> in the input file.

ExceptionHandler exceptionHandler

Sets the function to be called when a stream exception is read in.

The default handler prints the exception and exits with a non-zero value.

CommentHandler commentHandler

StreamCommentHandler receives stream annotations.

These include progress messages, log files, informational messages, and other messages humans might be interested in. The default handler throws out the comment.

When handling Comments it is advisable to use Comment_isProgress() and DasIO_forwardProgress() to handle progress message This way progress messages do make it out, but are rate limited and thus don't swamp the output stream.

void* userData

An optional User-data pointer that is passed along to all callbacks.

This value may be NULL.

---

The documentation for this interface was generated from the following file:

• das2/processor.h
